Australian-Made Strength for Industrial, Electrical & Commercial Installations
Switch mounting brackets are an essential yet often overlooked component in electrical, lighting and industrial installations. They provide the structural stability, alignment and mounting precision required to ensure power outlets, switches, conduit assemblies and equipment remain secure, accessible and compliant. At RGB Industries, we manufacture high-quality, Australian-made switch mounting brackets engineered for durability, versatility and long service life across demanding environments.
Engineered for Harsh Australian Conditions
Every installation is different — and so are the mounting demands. That’s why our range includes outdoor brackets, pedestal posts, pendant systems, cantilever arms and antenna brackets designed to perform in real-world industrial and commercial conditions.
Our Outdoor Switch Mounting Brackets are built from hot-dipped galvanised steel, ensuring excellent corrosion resistance in weather-exposed locations. Whether you require support for single-phase (1 PH) or three-phase (3 PH) outlets, our brackets are available in 950 mm or 450 mm lengths, with base-plate or base-bar mounting options. Custom configurations (RGB10/C) allow installers to match site-specific constraints without compromising reliability.

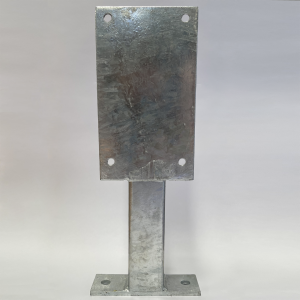

For elevated mounting requirements, our Pedestal Posts deliver a stable, free-standing solution. Manufactured from 100 mm square-section galvanised posts with 125 mm base plates, these posts are ideal for mounting 56 series outlets, switches and related equipment at accessible working heights. Standard models accommodate single or dual outlet configurations, while custom sizing options ensure complete adaptability.
Outdoor Brackets
| Item No. | Description | Specification |
|---|---|---|
| RGB10/1 | Outdoor Mounting Bracket - 1PH outlet | 950mm x 40mm sq |
| RGB10/2 | Outdoor Mounting Bracket - 3PH outlet | 950mm x 40mm sq |
| RGB10/3 | Outdoor Mounting Bracket - 1PH outlet | 450mm x 40mm sq w/base plate |
| RGB10/4 | Outdoor Mounting Bracket - 3PH outlet | 450mm x 40mm sq w/base plate |
| RGB10/10 | Outdoor Mounting Bracket -Isolator for 56 series | 300mm x 40mm sq w/base bar |
| RGB10/11 | Outdoor Mounting Bracket - 1PH outlet | 300mm x 40mm sq w/base bar |
| RGB10/C | Outdoor Mounting Bracket | Custom |
Pedestal Posts
| Item No. | Description | Specification | M.O.Q |
|---|---|---|---|
| RGB10/12 | Accepts 1x56 series outlet & switch - hot dip galv | 100mm x 100mm x 500mm sq post 125mm x 125mm base mounting plate | 1 |
| RGB10/12C | Accepts 1x56 series outlet & switch - hot dip galv | Custom Sizing | 1 |
| RGB10/13 | Accepts 2x56 series outlet & switch - hot dip galv | 100mm x 100mm x 500mm sq post 125mm x 125mm base mounting plate | 1 |
| RGB10/13C | Accepts 2x56 series outlet & 125mm base mounting plate | Custom Sizing | 1 |
| RGB10/C | Pedestal Post | Custom | 1 |
Mounting Brackets for Overhead and Lateral Installations

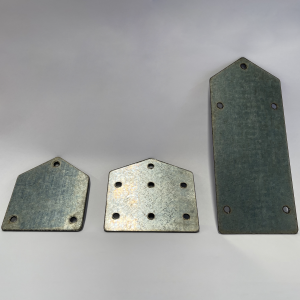

Suspended installations require dependable hardware, which is where our Pendant Mounting Brackets excel. Available in single, double or triple outlet layouts for 3 PH configurations — and a 1 PH double outlet version — these brackets are engineered for safe overhead mounting in warehouses, workshops and plant environments. With minimum order quantity (MOQ) of five units, they provide a consistent, repeatable mounting standard for larger sites and rollout projects.
Where wall- or ceiling-mounting is not practical, our Cantilever Brackets provide a strong lateral support system. With both braced and unbraced options from 300 mm to 600 mm in length, these galvanised brackets give installers flexible mounting geometry without sacrificing load capacity. Their robustness makes them ideal for external fixtures, signage, cameras, small equipment and conduit supports.
For telecommunications and utility projects, our Antenna Brackets offer fascia-mount designs in 1400 mm and 1800 mm heights. These brackets provide solid mast, antenna or signage mounting points for reliable performance in exposed conditions.
Pendant Brackets
| Item No. | Description | Specification | M.O.Q |
|---|---|---|---|
| RGB10/5 | Pendant Mounting Bracket | 3PH Single o/let | 5 |
| RGB10/6 | Pendant Mounting Bracket | 3PH Double o/let | 5 |
| RGB10/7 | Pendant Mounting Bracket | 3PH Triple o/let | 5 |
| RGB10/8 | Pendant Mounting Bracket | 1PH Double o/let | 5 |
| RGB10/9 | Pendant Mounting Bracket | 3PH Switch only | 5 |
| RGB10/C | Pendant Brackets | Custom | 1 |
Cantilever Brackets
| Item No. | Description | Specification | M.O.Q |
|---|---|---|---|
| RGB 14/1 | Cantilever Mounting Bracket | Galv 300mm long (no brace) | 1 |
| RGB 14/2 | Cantilever Mounting Bracket | Galv 450mm long (braced) | 1 |
| RGB 14/3 | Cantilever Mounting Bracket | Galv 600mm long (braced) | 1 |
Antenna Brackets
| Item No. | Description | Specification | M.O.Q |
|---|---|---|---|
| RGB15/1 | Antenna Bracket: fasia mount | 1400mm high | 1 |
| RGB15/2 | Antenna Bracket: fasia mount | 1800mm high | 1 |
Why Choose RGB Industries’ Mounting Brackets?
Australian-made for Australian conditions — Local manufacture ensures fast turnaround, consistent quality and dependable supply nationwide.
Heavy-duty materials — Standardised galvanised finishes resist corrosion, moisture and environmental degradation.
Flexible configurations — From standard models to fully customised solutions, installers can specify the exact dimensions and layout required.
Installer-friendly design — Clear item numbers, streamlined layouts and predictable mounting geometry reduce installation time and minimise site rework.
Compliance – Correct support and secure mounting of electrical equipment is not just best practice — it aligns with national safety requirements. According to Safe Work Australia’s Code of Practice: Managing electrical risks in the workplace:
“Electrical equipment must be securely mounted and protected from mechanical damage, vibration or movement that could affect its safe operation.”
— Safe Work Australia (2021)
Common Applications
RGB Industries’ switch mounting brackets support a wide range of sectors, including:
Industrial plants, workshops and processing facilities
Electrical, construction and civil infrastructure projects
Telecommunications and security installations
Utilities, transport and logistics environments
Custom or large-scale installations requiring non-standard mounting hardware
Our products serve as the structural foundation for power outlets, isolators, lighting fixtures, antennas, switches, conduit runs, signage and more — ensuring long-lasting reliability in every project.
